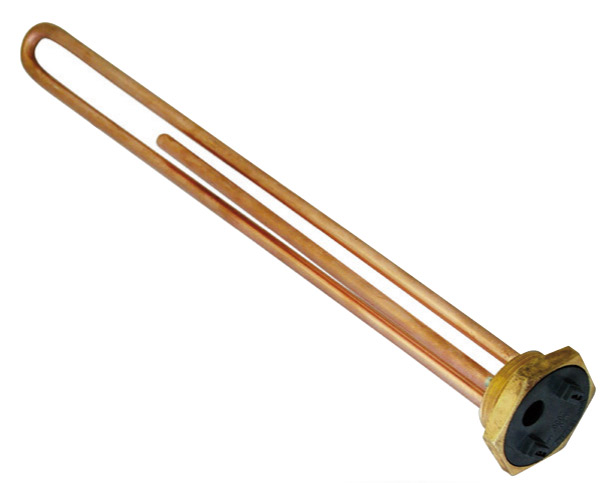

Straight Threaded Plug Heating Elements









WE401

Volt: 220 single-phase, Watt: from 1000 to 3000 (see table) Threaded connection M 1”1/4 GAS - ISO 228/1, Brass CW617N, copper resistance pipe: 8.5 mm, electric connection: Faston, surface charging field: On request with thermostat probe door: L = 275 mm copper, bottom of scale 70-80°C single and double safety device in compliance with Standard EN 60730-I.

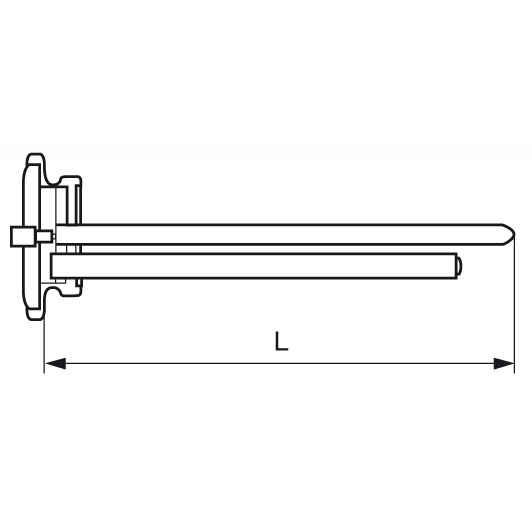

COD. Connessione L L1 Watt
WE401 G1”1/4 M 280 - 1000
WE401 G1”1/4 M 280 - 1200
WE403 G1”1/4 M 280 - 1500
WE404 G1”1/4 M 350 - 2000
WE405 G1”1/4 M 400 - 2500
WE406 G1”1/4 M 400 - 3000










Gepanzerte elektrische Widerstände
