Rounded Extensions









WF3510

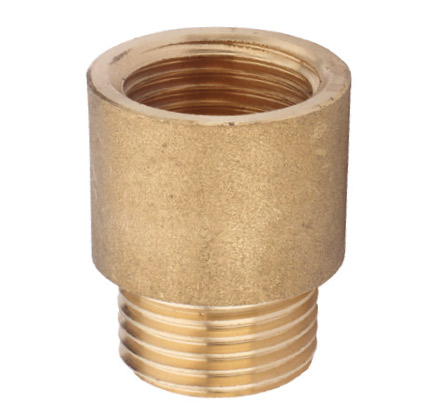

MF ROUNDED extensions. Hydraulic application (pneumatic on request), in CW614 N brass. Finish: Natural brass (nickel-plated available on request) - Taper threads ISO 228/1 (ISO 7 - DIN 2999 - BS 21 Metric - ISO R/262 on request). Max. temp. 130°.

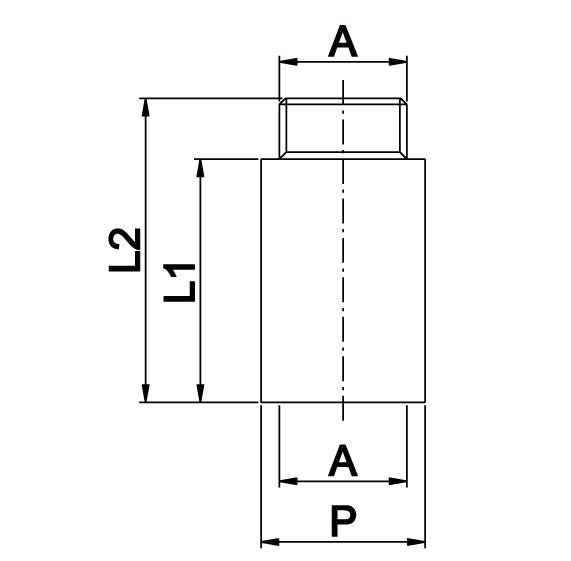

COD. A L1 L2 P CH
WF3510 1/2" 10 20 27 -
WF3511 1/2" 15 25 27 -
WF3512 1/2" 20 30 27 -
WF3513 1/2" 25 35 27 -
WF3514 1/2" 30 40 27 -
WF3515 1/2" 40 50 27 -
WF3516 1/2" 50 60 27 -
WF3517 1/2" 60 70 27 -
WF3518 1/2" 80 90 27 -
WF3519 1/2" 100 110 27 -
WF3530 3/4" 10 - - -
WF3531 3/4" 15 - - -
WF3532 3/4" 20 - - -
WF3534 3/4" 30 - - -
WF3535 3/4" 40 - - -
WF3536 3/4" 50 - - -
WF3542 1" 20 - - -
WF3544 1" 30 - - -
WF3545 1" 40 - - -
WF3546 1" 50 - - -
